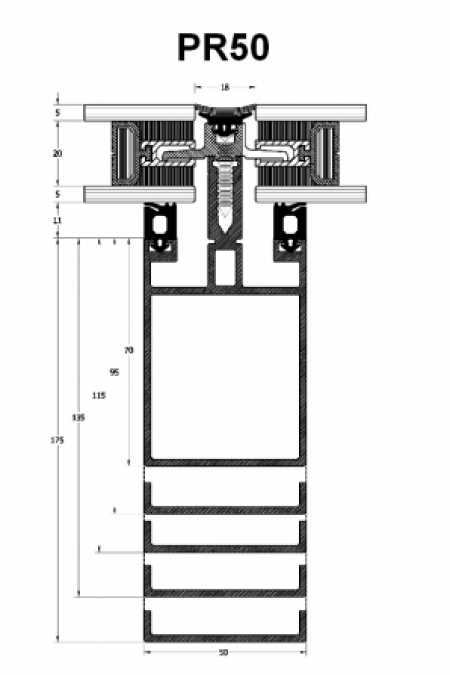

Completed structural facade system Profilco PR50 for external cover of buildings and big shop windows.
Characteristics:
1. The glazed glasses have thickness from 30 to
32 mm.
2. Specific for the system is
that from the outside all you can see is only glass
3. The
link between the columns and horizontals is made through overlapping which
ensures the water drainage from the external side of the building.
4. The
decrease in the construction weight reduces the cost because of the supporting function which the assembled glass has.
5. The 10 mm polyamide gaskets made of fibreglass ensure excellent heat isolation and therefore, reduce the costs for consumables for the building.
6. Decorative gasket
18 mm for shaping the gap between adjoining glasses.
7. Can
be combined with opening outwards and upwards windows.
8. The full water isolation is
achieved through EPDM gaskets with water resistant silicon.
9. The same profiles are used
for the standard and structural facades. In that way the waste material is reduced.
