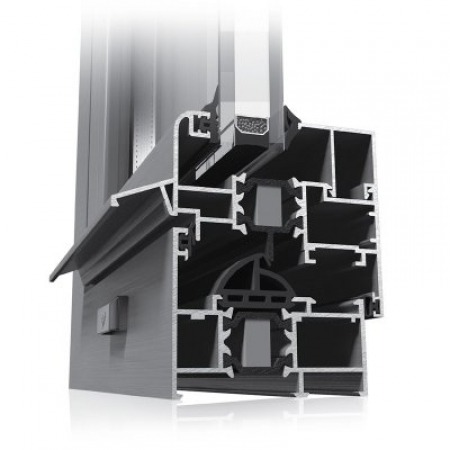

E 24 Etem is extremely stable and reliable
system for aluminum window frames
with a thermal bridge that allows
performance of fixed and opening positions.
Coefficient of thermal transmittance - Uf = 2,34 W / m² K.
67.5 mm width of the system for the straight line and 75 mm for the rounded
Opening - Opening of the vertical axis, two flatter opening, a possibility of opening outwards and inwards,
opening the lower and upper horizontal
axis, opening a "harmonica, " a parallel sliding
Complementary profiles with
larger inertia moments for manufacturing big
show cases
Slim line with covering frame, suitable for striped windows without a distinct raster on the opening and fixed part
Possibility of two-color profiles
Carefully selected reliable accessories
Glazing from
18 to 46 mm
Specially selected EPDM gaskets for better thermal insulation, drainage and air tightness.
Ability to embed in curtain wall HERE.
